Load cell 697H-30t 100T IP66 stainless steel or alloy steel Column weight force sensor for truck scale weightbridge C3 2.0± 0.001mV/V
- Price
- US $120
- Model
- 697H-30T
- MOQ
- 1 piece
Item specifics
- Load cell structure
- Column load cell
- load cell material
- stainless steel or alloy steel
- Usage
- load cell for truck scale
- Capacity
- 30T
- Accuracy class
- OIML C3
- Interchangeable with
- TOLEDO LOAD CELL GD
- Sensitivity
- 2.0± 0.001mV/V
- Zero balance
- 1.00%mV/V
- Creep over 30min
- 0.03%
Review
Description

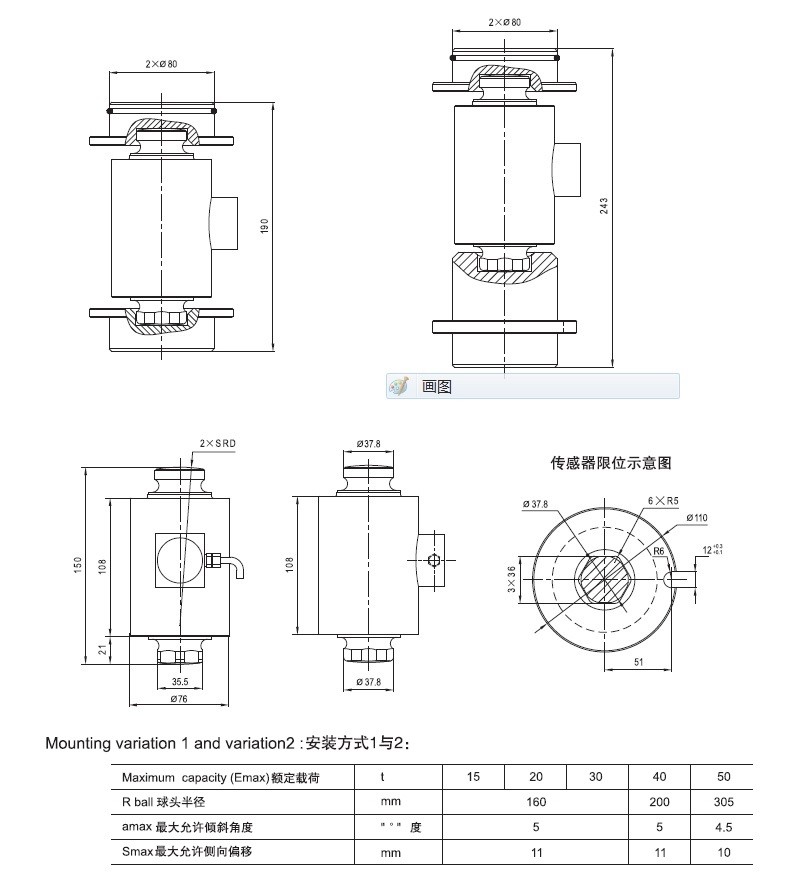

Model No. 697H
Comply with OIML C3
is Column type load cell
and is a column load cell suitable for truck scale
Interchangeable with TOLEDO LOAD CELL GD
Stainless steel or alloy steel
Delivery time: within 10days for alloy steel
interchangeable with Vishay HBM,Mettler Toledo Load cell
Good quality and long life with competitive price!
Could customize as per your requirements
| PARAMETER | UNIT | TECHNICAL DATA |
|---|---|---|
| Rated capacity (Emax) | kg | 10,000...50,000 |
| Accuracy class | C3 | |
| Sensitivity | mV/V | 2.0± 0.001 |
| Zero balance | mV/V | 1.00% |
| Creep over 30min | % | 0.03 |
| NO-linearity | % | 0.03 |
| Hysteresis | % | 0.03 |
| Temperature effect on zero | %/ | 0.02 |
| Temperature effect on output | %/ | 0.015 |
| Nominal temperature range | -10 to +40 | |
| Service temperature range | -30 to +65 | |
| Limit load | % of R.C. | 150 |
| Break load | % of R.C. | 300 |
| Nominal excitation | V | 5~10 |
| Max. excitation | V | 15 |
| Input impedance | 760 ±10 | |
| Output impedance | 702 ±3 | |
| Insulation resistance | M | >5000 |
| Cable length | M | 10,000kg...30,000 12m, 40,000...100,000 20m |
| Cable type | 4 conductors, Braid Shielded, Black PVC Jacket | |
| Color code | +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht | |
| Construction | Alloy steel/Stainless steel |
A load cell is a highly accurate and reliable device used to measure weight or force. It is commonly used in industrial and commercial applications where precise weight measurements are required. Load cells are designed to convert the force applied to them into an electrical signal that can be easily measured and recorded.
At its core, a load cell consists of a metal body with strain gauges attached to it. When a force is applied to the load cell, the metal body deforms slightly, causing the strain gauges to change their resistance. This change in resistance is then converted into an electrical signal that can be read by a computer or other device.
Load cells come in a variety of shapes and sizes, and can be used in a wide range of applications. They are commonly used in weighing scales, industrial machinery, and even in medical equipment. Load cells are known for their high accuracy and reliability, making them an essential tool for many industries.
