656A 1000kg to 300000kg Tension and compresion load cell sensor for withstanding extraneous loads 2.0± 1%mV/V
656A 1000kg to 300000kg Tension and compresion load cell sensor for withstanding extraneous loads 2.0± 1%mV/V
Model
656A

Item specifics

Capacity
1,000kg...300,000kg
material
alloy steel
Application
withstanding extraneous loads High permissible dynamic load
Accuracy class
C1
Sensitivity
2.0± 1%mV/V
Zero balance
0.04mV/V
Creep over 30min
0.05%
Repeatability
0.03%

Review

Description

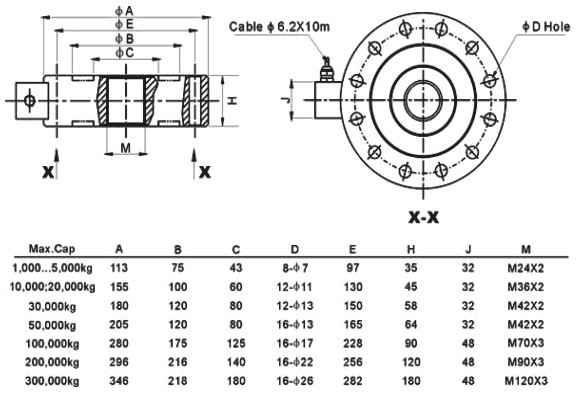

656A 1000kg to 300000kg Tension and compresion load cell for withstanding extraneous loads

PARAMETER UNIT TECHNICAL DATA
Rated capacity (Emax) kg 1,000...300,000
Accuracy class  C1
Sensitivity mV/V2.0± 1%
Zero balance mV/V0.04
Creep over 30min %0.05
Temperature effect on zero %/ 0.0023
Temperature effect on output %/ 0.0012
Hysteresis % 0.05
Linearity deviation % 0.05
Repeatability % 0.03
Nominal temperature range  -10 to +40
Service temperature range  -30 to +70
Limit load % of R.C. 150
Break load % of R.C. 300
Nominal excitation V 5~12
Max. excitation V 15
Input impedance  770± 30
Output impedance  700± 5
Insulation resistance M >2000
Cable length M 10
Cable type  4 conductors, Braid Shielded, Black PVC Jacket
Color code  +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht

interchangeable with Vishay HBM,Mettler Toledo Load cell

Good quality and long life with competitive price!
