651C-651CW single point load cell 30g 60g 100g 150g 200g load cell for jewellery scale

Group single point load cell
Min. Order 1 piece
Terms of Payment Western Union, T/T, Paypal
Update Time 2019-10-14
Item specifics
materialaluminum
load cell typesingle point load cell
Capacity30g 60g 100g 150g 200g
Interchangeable withVishay-Tedea1004
Accuracy classOIML C3, C4,C5,C6 standard
Sensitivity0.9± 10%mV/V
Zero balance0.04mV/V
Creep over 30min0.012%
Linearity deviation0.01%
Repeatability0.01%
  • Description
  • Product review

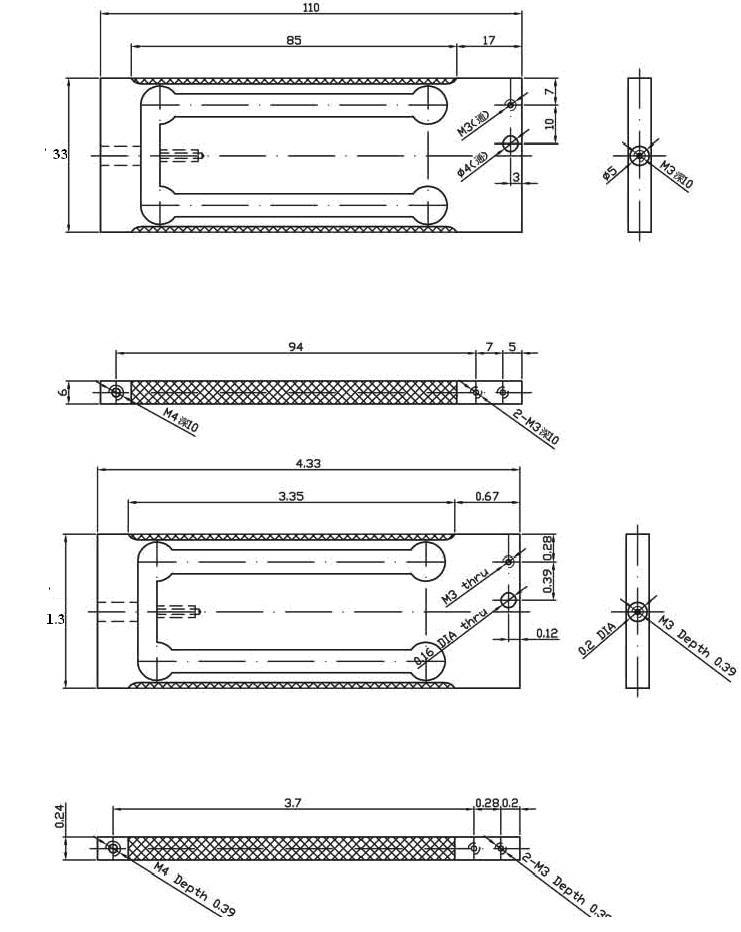

Single point load cell-651CW
Capacity from 30g to 200g
Interchangeable with Vishay-Tedea1004
OIML C3, C4,C5,C6 standard

PARAMETER UNIT TECHNICAL DATA
Rated capacity (Emax) g 30g/ 60g/100g/150g/ 200g
Huazhun Grade  B
Sensitivity mV/V0.9± 10%
Zero balance mV/V0.04
Creep over 30min %0.012
Temperature effect on zero %/ 0.004
Temperature effect on output %/ 0.0014
Hysteresis % 0.01
Linearity deviation % 0.01
Repeatability % 0.01
Nominal temperature range  -10 to +40
Service temperature range  -30 to +70
Limit load % of R.C. 150
Break load % of R.C. 200
Nominal excitation V 5~12
Max. excitation V 15
Input impedance  405 ±10
Output impedance  350 ±3
Insulation resistance M >2000
Cable length M 0.35
Cable type  4 conductors, Braid Shielded, Black PVC Jacket
Color code  +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht

interchangeable with Vishay HBM,Mettler Toledo Load cell
