689C 10000 to 50000kg Column load cell for truck scale
689C 10000 to 50000kg Column load cell  for truck scale
Price
US $120
Model
689C
Min. Order
1 piece

Item specifics

Load cell structure
Column load cell
load cell material
stainless steel or alloy steel
Usage
load cell for truck scale
Interchangeable with
HMB C16
Capacity
10,000 to 50,000kg
Accuracy class
C3
Sensitivity
2.0± 0.001mV/V
Zero balance
1.00%mV/V
Creep over 30min
0.03%
Hysteresis
0.03%

Product review

Description

Model No. 689C
Comply with OIML C3
CE certificated
is Column type load cell
and is a load cell suitable for truck scale
Interchangeable with HMB C16
Stainless steel or alloy steel
Delivery time: within 10days for alloy steel

interchangeable with Vishay HBM,Mettler Toledo Load cell

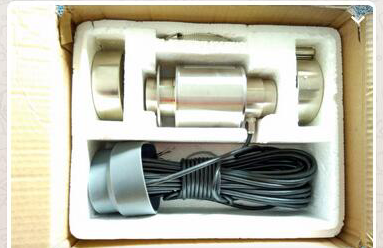

Accessories: include two covers, one pin, one sleeve


PARAMETER UNIT TECHNICAL DATA
Rated capacity (Emax) kg 10,000...50,000
Accuracy class  C3
Sensitivity mV/V2.0± 0.001
Zero balance mV/V1.00%
Creep over 30min   %0.03
NO-linearity%0.03
Hysteresis%0.03
Temperature effect on zero %/ 0.02
Temperature effect on output %/ 0.015
Nominal temperature range  -10 to +40
Service temperature range  -30 to +65
Limit load % of R.C. 150
Break load % of R.C. 300
Nominal excitation V 5~10
Max. excitation V 15
Input impedance  760 ±10
Output impedance  702 ±3
Insulation resistance M >5000
Cable length M 10,000kg...30,000 12m, 40,000...100,000 20m
Cable type  4 conductors, Braid Shielded, Black PVC Jacket
Color code  +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht
Construction  Alloy steel/Stainless steel

Good quality and long life with competitive price!
