615B 200kg 500kg Aluminum S Type weight load cell sensor for crane scale OIML C3 2.3± 0.04mV/V
615B 200kg 500kg Aluminum S Type weight load cell sensor for crane scale OIML C3 2.3± 0.04mV/V
Model
615B

Item specifics

Accuracy class
OIML C3 standard
material
Aluminum
Application
Weaving,crane scale,and other weighing devices
Capacity
200kg 500kg
Sensitivity
2.3± 0.04mV/V
Zero balance
2mV/V
Creep over 30min
0.02%
Repeatability
0.02%

Review

Description

interchangeable with Vishay HBM,Mettler Toledo Load cell

Good quality and long life with competitive price!

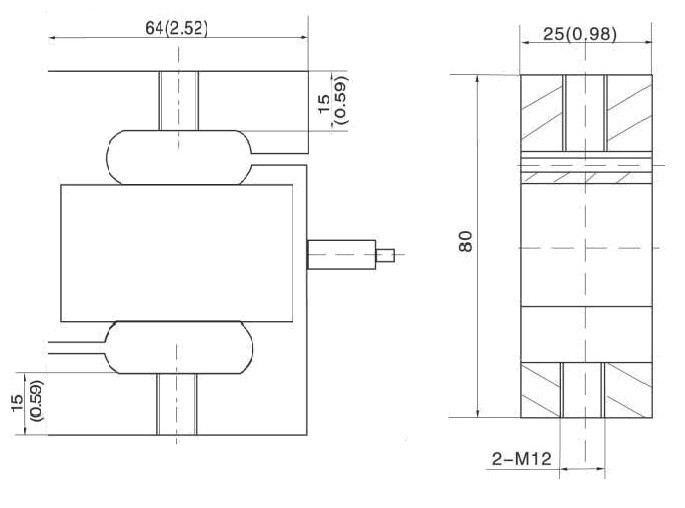

Aluminum S Type load cell for crane scale

PARAMETER UNIT TECHNICAL DATA
Rated capacity (Emax) kg 200kg; 500kg
Accuracy class  C2
Sensitivity mV/V2.3± 0.04
Zero balance mV/V2
Creep over 30min %0.02
Temperature effect on zero %/ 0.003
Temperature effect on output %/ 0.003
Hysteresis % 0.02
Linearity deviation % 0.02
Repeatability % 0.02
Nominal temperature range  -10 to +40
Service temperature range  -30 to +65
Limit load % of R.C. 150
Break load % of R.C. 200
Nominal excitation V 5~12
Max. excitation V 15
Input impedance  405± 30
Output impedance  350± 3
Insulation resistance M >2000
Cable length M 2
Cable type  4 conductors, Braid Shielded, Black PVC Jacket
Color code  +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht
